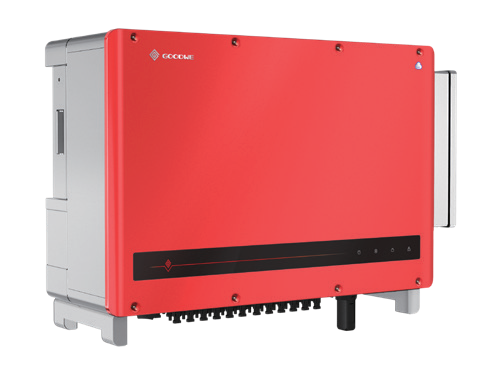

High-performance three-phase string inverter with 73-136 kW capacity, up to 99% efficiency, advanced protection, and smart cooling, ideal for large-scale solar installations.
Description
Product Type: Three-Phase String Inverter.
Power Capacity: Available in 73 kW to 136 kW variants.
Input (DC):
Max. DC Input Power: 112.5 kW to 205 kW.
Max. DC Input Voltage: 800V to 1100V.
MPPT Operating Voltage Range: 180V to 1000V.
Number of MPPTs: 10 to 12.
Max. Input Current per MPPT: 30A.
Max. Short Circuit Current per MPPT: 45A.
Number of Strings per MPPT: 2.
Output (AC):
Nominal Output Power: 73 kW to 136 kW.
Max. AC Apparent Power: 75 kVA to 150 kVA.
Nominal AC Voltage: 220V to 500V.
Nominal AC Grid Frequency: 50/60 Hz.
Max. Output Current: 192A to 173.2A.
Total Harmonic Distortion (THD): <3%.
Efficiency:
Max. Efficiency: Up to 99.0%.
European Efficiency: Up to 98.5%.
Protection Features:
Integrated PV String Current Monitoring.
Integrated Internal Humidity Detection.
Integrated DC Insulation Resistance Detection.
Integrated Residual Current Monitoring Unit.
Integrated Anti-Islanding Protection.
Integrated DC Reverse Polarity Protection.
DC and AC Surge Arrester Type II (Type I optional).
Integrated AC Overcurrent, Short Circuit, and Overvoltage Protection.
Optional DC Arc Fault Circuit Interrupter.
Optional PID Recovery.
General Data:
Operating Temperature Range: -30°C to 60°C.
Relative Humidity: 0-100%.
Max. Operating Altitude: 5000 m (derating above 4000 m).
