Jinko Solar

Jinko Solar

Categories:

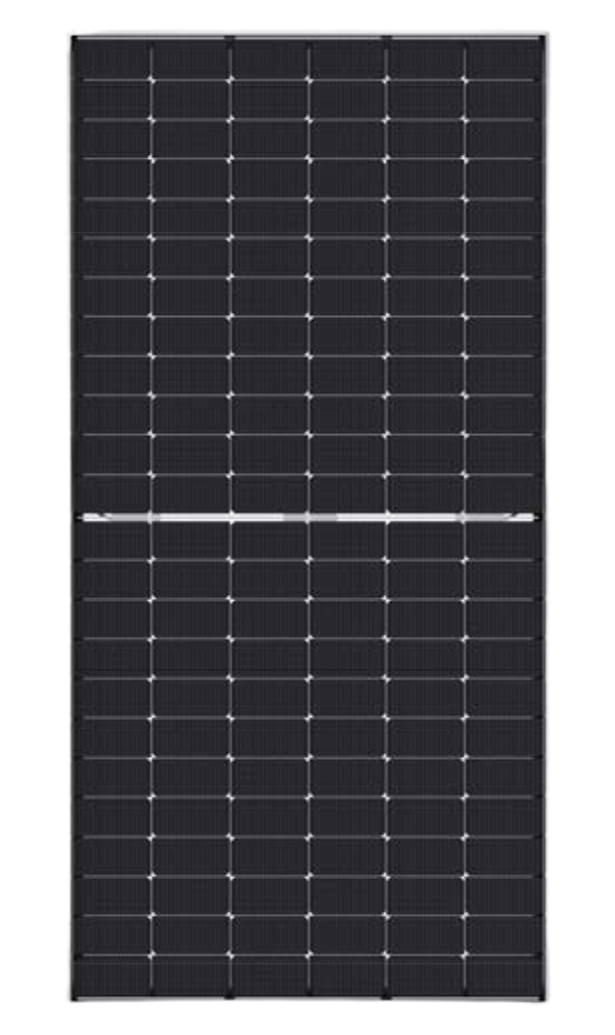

The Tiger Neo N-type 72HL4-BDV Bifacial Solar Module delivers 550W-570W power with 22.07% efficiency

Description

  1. Product Type: Tiger Neo N-type 72HL4-BDV Bifacial Solar Module.
  2. Power Output: 550W – 570W.
  3. Efficiency: Up to 22.07%.
  4. Key Technologies:
    • SMBB Technology: Enhances light trapping and current collection for improved power output and reliability.
    • Hot 2.0 Technology: Better reliability with lower LID/LETID.
    • PID Resistance: Excellent anti-PID performance through optimized production and material control.
  5. Durability:
    • Mechanical Load: Certified to withstand wind load of 2400 Pa and snow load of 5400 Pa.
    • Enhanced Mechanical Load: Higher durability with dual glass design.
  6. Certifications:
    • ISO9001:2015 (Quality Management)
    • ISO14001:2015 (Environmental Management)
    • ISO45001:2018 (Occupational Health & Safety)
    • IEC61215(2016), IEC61730(2016)
  7. Warranty:
    • 12-year product warranty.
    • 30-year linear power warranty with 0.40% annual degradation.
  8. Mechanical Specifications:
    • Dimensions: 2278 × 1134 × 30 mm.
    • Weight: 32 kg.
    • Front Glass: 2.0mm Anti-Reflection Coating, heat strengthened.
    • Frame: Anodized aluminium alloy.
    • Junction Box: IP68 rated.
  9. Temperature Characteristics:
    • Temperature Coefficient (Pmax): -0.30% / °C.
    • Temperature Coefficient (Voc): -0.25% / °C.
    • Temperature Coefficient (Isc): +0.046% / °C.
    • Nominal Operating Cell Temperature (NOCT): 45±2°C.
  10. Power Tolerance: 0~+3%.
