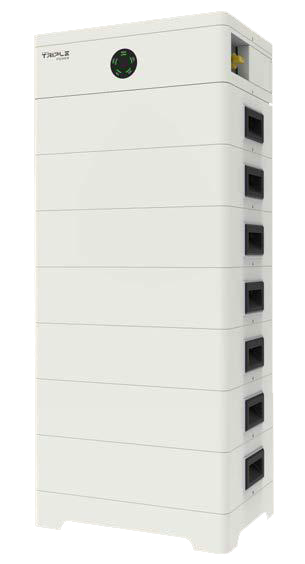

Solax T-BAT-SYS-HV-S3.6 battery

Categories:

The High Voltage Lithium-Ion (LFP) Battery System, ranging from 7.3 kWh to 47.9 kWh, offers flexible, stackable installation with advanced safety features and remote management capabilities

Description

  1. Product Type: High Voltage Lithium-Ion (LFP) Battery System.
  2. Models Available: T-BAT HS7.2 to T-BAT HS46.8.
  3. Capacity Range:
    • Nominal Capacity: 7.3 kWh to 47.9 kWh.
    • Usable Energy (90% DOD): 6.5 kWh to 43.1 kWh.
  4. Performance:
    • Max. Continuous Charging/Discharging Current: 50A.
    • Nominal Power: 3.5 kW to 23.2 kW.
    • Max. Power: 5.1 kW to 33.2 kW.
  5. Safety Features:
    • Reliable LFP battery cells.
    • Battery heating technology for low-temperature operation.
    • Over 6000 cycles of life expectancy.
    • Soft start feature to protect batteries and inverters from sudden surges.
  6. Installation:
    • Stackable modules for easy and fast single-person installation.
    • Pre-wired communication cables for plug-and-play setup.
    • IP65 rated for indoor and outdoor installation.
  7. Flexibility:
    • Extendable capacity during the product lifetime.
    • Communication interfaces: RS485 and CAN.
    • Remote diagnosis and updates via inverter.
  8. Operating Conditions:
    • Charging temperature range: 0°C to 53°C without heating, -30°C to 53°C with heating.
    • Discharging temperature range: -20°C to 53°C.
    • Maximum operating altitude: < 3000 m.
  9. Dimensions and Weight (varies by model):
    • Example for T-BAT HS46.8:
      • Dimensions: 510 × 365 × 1195 mm + 510 × 365 × 1058 mm.
      • Weight: 454.3 kg.
  10. Certifications:
    • IEC62619, IEC60730, IEC62040, CE, UN38.3.
