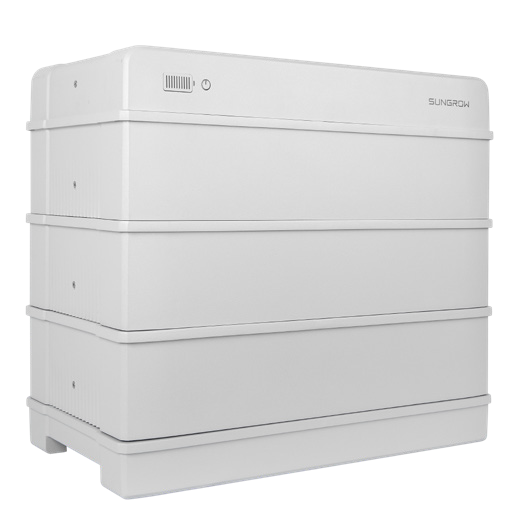

Sungrow SBR High Voltage LFP Battery

Categories:

The High Voltage Lithium Iron Phosphate (LFP) Battery offers modular, expandable capacity from 9.6 kWh to 25.6 kWh per unit, with robust safety features and easy installation, backed by a 10-year warranty.

Description

  1. Product Type: High Voltage Lithium Iron Phosphate (LFP) Battery.
  2. Models Available: SBR096, SBR128, SBR160, SBR192, SBR224, SBR256.
  3. Capacity Range:
    • Supports 3-8 modules per unit.
    • Capacity range from 9.6 kWh to 25.6 kWh per unit.
    • Maximum capacity with parallel units: 9–100 kWh.
  4. Efficiency:
    • Up to 100% usable energy.
    • Up to 30 A continuous charging and discharging current.
  5. Safety Features:
    • Multi-stage protection design.
    • Extensive safety certifications: CE, CEC, IEC 62619, IEC 62040, UN 38.3, VDE 2510-50.
    • Over/under voltage, overcurrent, over/under temperature protection, and DC breaker included.
  6. Flexibility:
    • Extendable during lifetime.
    • Modular design allows for easy expansion.
    • Supports up to 4 units in parallel.
  7. Installation:
    • Compact and lightweight for single-person installation.
    • Plug and Play design, no cables needed between battery modules.
    • Suitable for indoor/outdoor installation.
    • Floor stand mounting method.
  8. Operating Conditions:
    • Charging temperature range: 0°C to 50°C.
    • Discharging temperature range: -20°C to 50°C.
    • Degree of protection: IP55.
    • Maximum operating altitude: 4000 m.
    • Cooling method: Natural convection.
  9. Warranty: 10 years.
  10. Dimensions and Weight (varies by model):
    • Example for SBR256:
      • Dimensions: 625 x 1195 x 330 mm.
      • Weight: 279 kg.
